General characteristics

-  Stamped surface tops manufactured in 2 mm thick AISI-304 stainless steel.
-  Laser-cut joints, automatic welding and polished.
-  10 mm thick cast iron plate with rounded corners. 300 mm diameter surface.
-  Refractory brick with cast iron shield inside to take better advantage of the heat and distribute it better.
-  Temperatures for differentiated use: 500 °C at the centre and 200 °C near the edges.
-  Low consumption pilot and thermocouple.
-  Gas conduction in flexible stainless steel tube, making internal manipulation easier and facilitating any repair work.
-  Controls set on a protective base with system against water infiltration.
- High temperature enamelled cast iron
flue protector aligned with the hobs, facilitating manoeuvrability and support of the containers, increasing the
useful surface area.
- Access to the components from the front.

Specifications

- Easy to use static GN 2/1 size oven, with the controls positioned on the upper panel.
- Stainless steel cooking chamber, making it easier to clean and provides better hygiene.
- Tray introduced sideways, making it easier to handle.
- Guides at three heights to offer different working options.
- Guides with “U” shape to prevent the trays from tipping.
- Temperature controlled by thermostatic valve (125 – 310 °C).
- Tubular stainless steel burner, with pilot and thermocouple, and piezoelectric ignition.
- Oven floor manufactured in 6 mm cast iron, guaranteeing better performance and even heat distribution.
- Fibreglass closing seal to improve the oven’s thermal efficiency.

GAS TYPE: LPG / NG

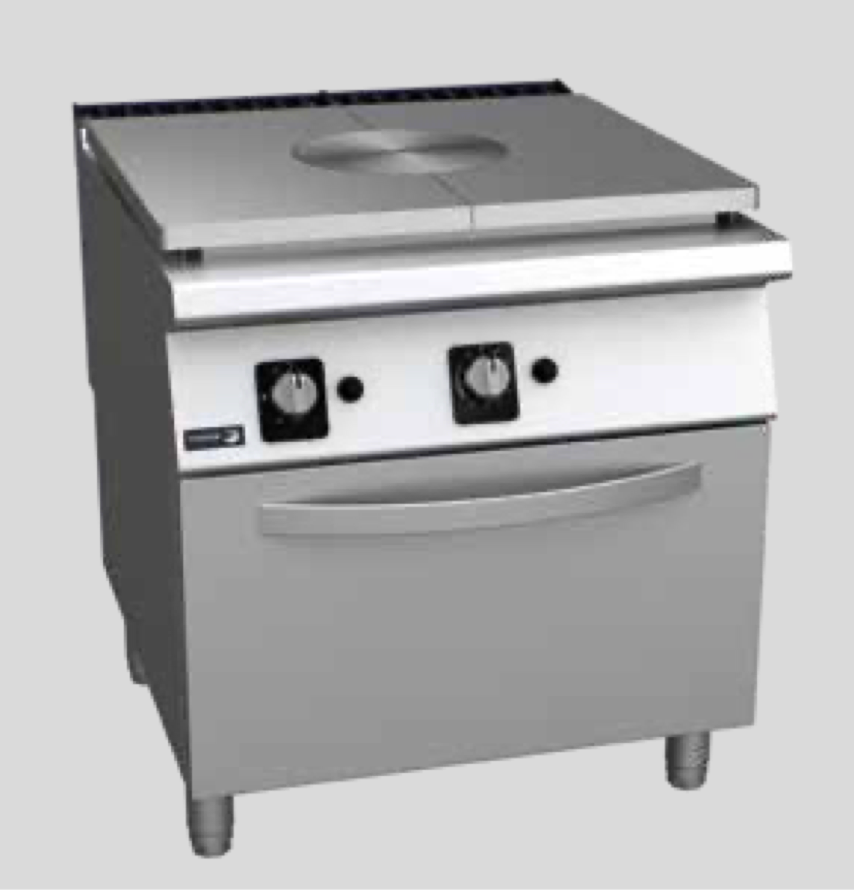

MODEL: C-G910

SOLID TOP DIMENSIONS: 800x700mm

DIMENSIONS: 800x930x290

TOTAL POWER: KW
